Red time between phase switching (s)- is the desired time that the signal shows red both for vehicular traffic and pedestrians when either of these has been green.

The green time of the pedestrian signal - is the desired time that the pedestrian signal is green.

Then add two desired crossing signals either by typing its name or clicking on them on the map.

Resting green - (All system types running radar)

This setting allows you to set a specific unit to rest in green. This means that when no other signal requests green, this phase/unit can be green.

Advanced - (All system types running radar)

Minimum green time (s)
- Specify the minimum time in seconds that the phase can be green
Extra green time on request (s)
- Specify additional time in seconds that the phase will be green when it is already green and detects a car.
Max green time on request (s)
- Specify the maximum time in seconds the phase can be green when another phase has requested green (if it continues to detect cars this stops them never turning green for the other)
Automatic request time (s)
- Specify the time the phase waits in red until it automatically requests green (regardless of radar situation). Ensures that if the radar has missed a car, they don't have to wait until 2050.

Request Green -

When the desired settings have been made, click the SAVE button in the upper right corner. The system is saved and started.

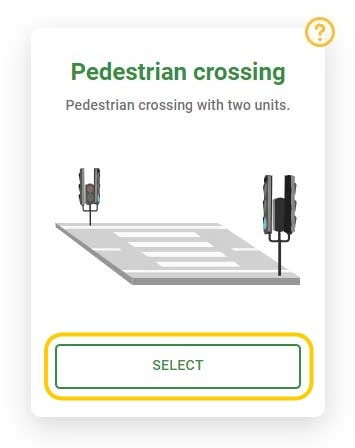

Create new system for Transition pointpedestrian crossing
